Inheritance diagram for ModelYolo:

[legend]

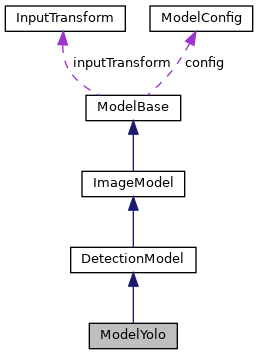

Collaboration diagram for ModelYolo:

[legend]

Classes
class	Region

Public Types
enum	YoloVersion { YOLO_V1V2 , YOLO_V3 , YOLO_V4 , YOLO_V4_TINY , YOLOF }

Public Member Functions
	ModelYolo (const std::string &modelFileName, float confidenceThreshold, bool useAutoResize, bool useAdvancedPostprocessing=true, float boxIOUThreshold=0.5, const std::vector< std::string > &labels=std::vector< std::string >(), const std::vector< float > &anchors=std::vector< float >(), const std::vector< int64_t > &masks=std::vector< int64_t >(), const std::string &layout="")

std::unique_ptr< ResultBase >	postprocess (InferenceResult &infResult) override

Public Member Functions inherited from DetectionModel
	DetectionModel (const std::string &modelFileName, float confidenceThreshold, bool useAutoResize, const std::vector< std::string > &labels, const std::string &layout="")

Public Member Functions inherited from ImageModel
	ImageModel (const std::string &modelFileName, bool useAutoResize, const std::string &layout="")

std::shared_ptr< InternalModelData >	preprocess (const InputData &inputData, ov::InferRequest &request) override

Public Member Functions inherited from ModelBase
	ModelBase (const std::string &modelFileName, const std::string &layout="")

virtual ov::CompiledModel	compileModel (const ModelConfig &config, ov::Core &core)

virtual void	onLoadCompleted (const std::vector< ov::InferRequest > &requests)

const std::vector< std::string > &	getOutputsNames () const

const std::vector< std::string > &	getInputsNames () const

std::string	getModelFileName ()

void	setInputsPreprocessing (bool reverseInputChannels, const std::string &meanValues, const std::string &scaleValues)

Protected Member Functions
void	prepareInputsOutputs (std::shared_ptr< ov::Model > &model) override

void	parseYOLOOutput (const std::string &output_name, const ov::Tensor &tensor, const unsigned long resized_im_h, const unsigned long resized_im_w, const unsigned long original_im_h, const unsigned long original_im_w, std::vector< DetectedObject > &objects)

Protected Member Functions inherited from DetectionModel
std::string	getLabelName (size_t labelID)

Protected Member Functions inherited from ModelBase
virtual void	setBatch (std::shared_ptr< ov::Model > &model)

std::shared_ptr< ov::Model >	prepareModel (ov::Core &core)

ov::Layout	getInputLayout (const ov::Output< ov::Node > &input)

Static Protected Member Functions
static int	calculateEntryIndex (int entriesNum, int lcoords, size_t lclasses, int location, int entry)

static double	intersectionOverUnion (const DetectedObject &o1, const DetectedObject &o2)

Protected Attributes
std::map< std::string, Region >	regions

double	boxIOUThreshold

bool	useAdvancedPostprocessing

bool	isObjConf = 1

YoloVersion	yoloVersion

const std::vector< float >	presetAnchors

const std::vector< int64_t >	presetMasks

ov::Layout	yoloRegionLayout = "NCHW"

Protected Attributes inherited from DetectionModel
float	confidenceThreshold

std::vector< std::string >	labels

Protected Attributes inherited from ImageModel
bool	useAutoResize

size_t	netInputHeight = 0

size_t	netInputWidth = 0

cv::InterpolationFlags	interpolationMode = cv::INTER_LINEAR

RESIZE_MODE	resizeMode = RESIZE_FILL

Protected Attributes inherited from ModelBase
InputTransform	inputTransform = InputTransform()

std::vector< std::string >	inputsNames

std::vector< std::string >	outputsNames

ov::CompiledModel	compiledModel

std::string	modelFileName

ModelConfig	config = {}

std::map< std::string, ov::Layout >	inputsLayouts

Additional Inherited Members
Static Public Member Functions inherited from DetectionModel
static std::vector< std::string >	loadLabels (const std::string &labelFilename)

Constructor & Destructor Documentation

◆ ModelYolo()

ModelYolo::ModelYolo	(	const std::string &	modelFileName,
		float	confidenceThreshold,
		bool	useAutoResize,
		bool	useAdvancedPostprocessing = `true`,
		float	boxIOUThreshold = `0.5`,
		const std::vector< std::string > &	labels = `std::vector<std::string>()`,
		const std::vector< float > &	anchors = `std::vector<float>()`,
		const std::vector< int64_t > &	masks = `std::vector<int64_t>()`,
		const std::string &	layout = `""`
	)

Constructor.

Parameters

modelFileName	name of model to load
confidenceThreshold	- threshold to eliminate low-confidence detections. Any detected object with confidence lower than this threshold will be ignored.
useAutoResize	- if true, image will be resized by openvino. Otherwise, image will be preprocessed and resized using OpenCV routines.
useAdvancedPostprocessing	- if true, an advanced algorithm for filtering/postprocessing will be used (with better processing of multiple crossing objects). Otherwise, classic algorithm will be used.
boxIOUThreshold	- threshold to treat separate output regions as one object for filtering during postprocessing (only one of them should stay). The default value is 0.5
labels	- array of labels for every class. If this array is empty or contains less elements than actual classes number, default "Label #N" will be shown for missing items.
anchors	- vector of anchors coordinates. Required for YOLOv4, for other versions it may be omitted.
masks	- vector of masks values. Required for YOLOv4, for other versions it may be omitted.
layout	- model input layout

The documentation for this class was generated from the following files:

src/common/models/include/models/detection_model_yolo.h
src/common/models/src/detection_model_yolo.cpp
