Inheritance diagram for ModelRetinaFace:

[legend]

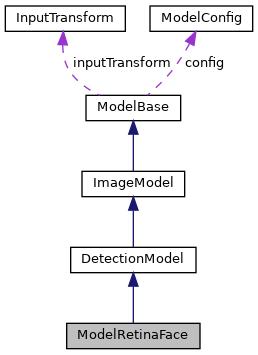

Collaboration diagram for ModelRetinaFace:

[legend]

Public Member Functions
	ModelRetinaFace (const std::string &model_name, float confidenceThreshold, bool useAutoResize, float boxIOUThreshold, const std::string &layout="")

std::unique_ptr< ResultBase >	postprocess (InferenceResult &infResult) override

Public Member Functions inherited from DetectionModel
	DetectionModel (const std::string &modelFileName, float confidenceThreshold, bool useAutoResize, const std::vector< std::string > &labels, const std::string &layout="")

Public Member Functions inherited from ImageModel
	ImageModel (const std::string &modelFileName, bool useAutoResize, const std::string &layout="")

std::shared_ptr< InternalModelData >	preprocess (const InputData &inputData, ov::InferRequest &request) override

Public Member Functions inherited from ModelBase
	ModelBase (const std::string &modelFileName, const std::string &layout="")

virtual ov::CompiledModel	compileModel (const ModelConfig &config, ov::Core &core)

virtual void	onLoadCompleted (const std::vector< ov::InferRequest > &requests)

const std::vector< std::string > &	getOutputsNames () const

const std::vector< std::string > &	getInputsNames () const

std::string	getModelFileName ()

void	setInputsPreprocessing (bool reverseInputChannels, const std::string &meanValues, const std::string &scaleValues)

Protected Types
enum	OutputType { OUT_BOXES , OUT_SCORES , OUT_LANDMARKS , OUT_MASKSCORES , OUT_MAX }

Protected Member Functions
void	generateAnchorsFpn ()

void	prepareInputsOutputs (std::shared_ptr< ov::Model > &model) override

Protected Member Functions inherited from DetectionModel
std::string	getLabelName (size_t labelID)

Protected Member Functions inherited from ModelBase
virtual void	setBatch (std::shared_ptr< ov::Model > &model)

std::shared_ptr< ov::Model >	prepareModel (ov::Core &core)

ov::Layout	getInputLayout (const ov::Output< ov::Node > &input)

Protected Attributes
bool	shouldDetectMasks

bool	shouldDetectLandmarks

const float	boxIOUThreshold

const float	maskThreshold

float	landmarkStd

std::vector< std::string >	separateOutputsNames [OUT_MAX]

const std::vector< AnchorCfgLine >	anchorCfg

std::map< int, std::vector< Anchor > >	anchorsFpn

std::vector< std::vector< Anchor > >	anchors

Protected Attributes inherited from DetectionModel
float	confidenceThreshold

std::vector< std::string >	labels

Protected Attributes inherited from ImageModel
bool	useAutoResize

size_t	netInputHeight = 0

size_t	netInputWidth = 0

cv::InterpolationFlags	interpolationMode = cv::INTER_LINEAR

RESIZE_MODE	resizeMode = RESIZE_FILL

Protected Attributes inherited from ModelBase
InputTransform	inputTransform = InputTransform()

std::vector< std::string >	inputsNames

std::vector< std::string >	outputsNames

ov::CompiledModel	compiledModel

std::string	modelFileName

ModelConfig	config = {}

std::map< std::string, ov::Layout >	inputsLayouts

Additional Inherited Members
Static Public Member Functions inherited from DetectionModel
static std::vector< std::string >	loadLabels (const std::string &labelFilename)

Constructor & Destructor Documentation

◆ ModelRetinaFace()

ModelRetinaFace::ModelRetinaFace	(	const std::string &	model_name,
		float	confidenceThreshold,
		bool	useAutoResize,
		float	boxIOUThreshold,
		const std::string &	layout = `""`
	)

Loads model and performs required initialization

Parameters

model_name	name of model to load
confidenceThreshold	- threshold to eliminate low-confidence detections. Any detected object with confidence lower than this threshold will be ignored.
useAutoResize	- if true, image will be resized by openvino.
boxIOUThreshold	- threshold for NMS boxes filtering, varies in [0.0, 1.0] range.
layout	- model input layout

The documentation for this class was generated from the following files:
